GROUP HOUSING - MAMMOTH
Space mammoth flexibility mammooth mammoth results
Available from SPRING 2025
GROUP HOUSING
The Calf-Tel Mammoth is the largest calf housing unit we have ever made.
In the world of animal husbandry, the future is built on the strength of our calves. At Calf-Tel, we think big and have designed mammooth with the success of the farmer and the herd in mind.
With a generous area of 10 square meters, it offers excellent ventilation, and a high-molecular-weight polyethylene structure ensures superior strength and durability.
MAIN FEATURES:
- 4 main structural components for easy assembly
- Simplified assembly with few fastening components
- Optimized vents for improved airflow
- Additional ventilation openings in the lower back to promote air exchange and improve calf welfare
MAMMOTH SPACE:
- 2.1 meters in height
- 3 meters wide
- 3.5 meters in length
construction:
- Made of high molecular weight polyethylene to provide durability and strength
- Built to last
Group/pair housing for calves improves:
- Social relations
- The intake of solid feed
- Weight gain before and after weaning
- Reduces stress
- Increases capacity for positive approach to new stimuli
Specifications
| Measurements (inches / lbs) | Measurements (metric) | Italian translation | |
|---|---|---|---|
| External dimensions. | 137.8″ L x 118.1″ W x 82.7″ H | 350 cm x 300 cm x 210 cm | Exterior Length x Width x Height |
| Useful interior space | 129.92″ L x 106.3″ W x 82.7″ H | 329.9 cm x 269.9 cm x 210 cm | Usable interior length x width x height |
| Weight | 450 lbs | 204.1 kg | Total weight |
Features & Benefits
Improved base
New reinforced base with beveled edge for easier transport – no wood!
Ventilation in the lower door
When closed, the lower door is integrated into the system with additional air intakes, useful in bad weather or cold temperatures.
Rear and side openings
They promote ventilation by ensuring continuous airflow.
Rear openings
They offer several solutions for adding bedding, also compatible with automated equipment.
Complete the system
With the Calf-Tel "Group Yard" group fence.
A sturdy, extremely durable and fully modular fence designed to provide more space for calves.
Available in 8|16 and 12|16 sizes, the Group Yard is Calf-Tel’s new fencing solution, designed to integrate seamlessly with the Group Hutch.
The smaller version can house 4 to 7 calves, while the larger one accommodates up to 8.
Thanks to the new ThruTube technology, an unlimited number of panels can be connected using ThruTube Extender connections, which reinforce the joints to ensure a fully modular and highly durable structure.
MAIN FEATURES:
- Designed to integrate seamlessly with Calf-Tel group shelters.
- Hot-dip galvanized steel side and front panels with Inside/Out finish for durability
- Optional HAMPEL Calf-Tel plastic eater with 60-liter capacity: extremely durable and easier to clean than the steel one
- Quick assembly system with interlocking corners and pins: easy disassembly for transport or cleaning
- Optional hinged front gate for direct and convenient access to the calf group
8|16 - Specifications
CONTAINS 4-7 CALVES
| Measurements (inches / lbs) | Measurements (metric) | Italian translation | |
|---|---|---|---|
| Length | 192″ | 489 cm | Total length |
| Width | 107,6″ | 273 cm | Total width |
| Height | 43″ | 109 cm | Total height |
| Weight | 152 lbs | 69 kg | Overall weight |
12|16 - Specifications
HOLDS UP TO 8 CALVES
| Measurements (inches / lbs) | Measurements (metric) | Italian translation | |
|---|---|---|---|
| Length | 192″ | 489 cm | Total length |
| Width | 142,6″ | 361 cm | Overall width |
| Height | 43″ | 109 cm | Total height |
| Weight | 197 lbs | 89 kg | Overall weight |
Features & Benefits

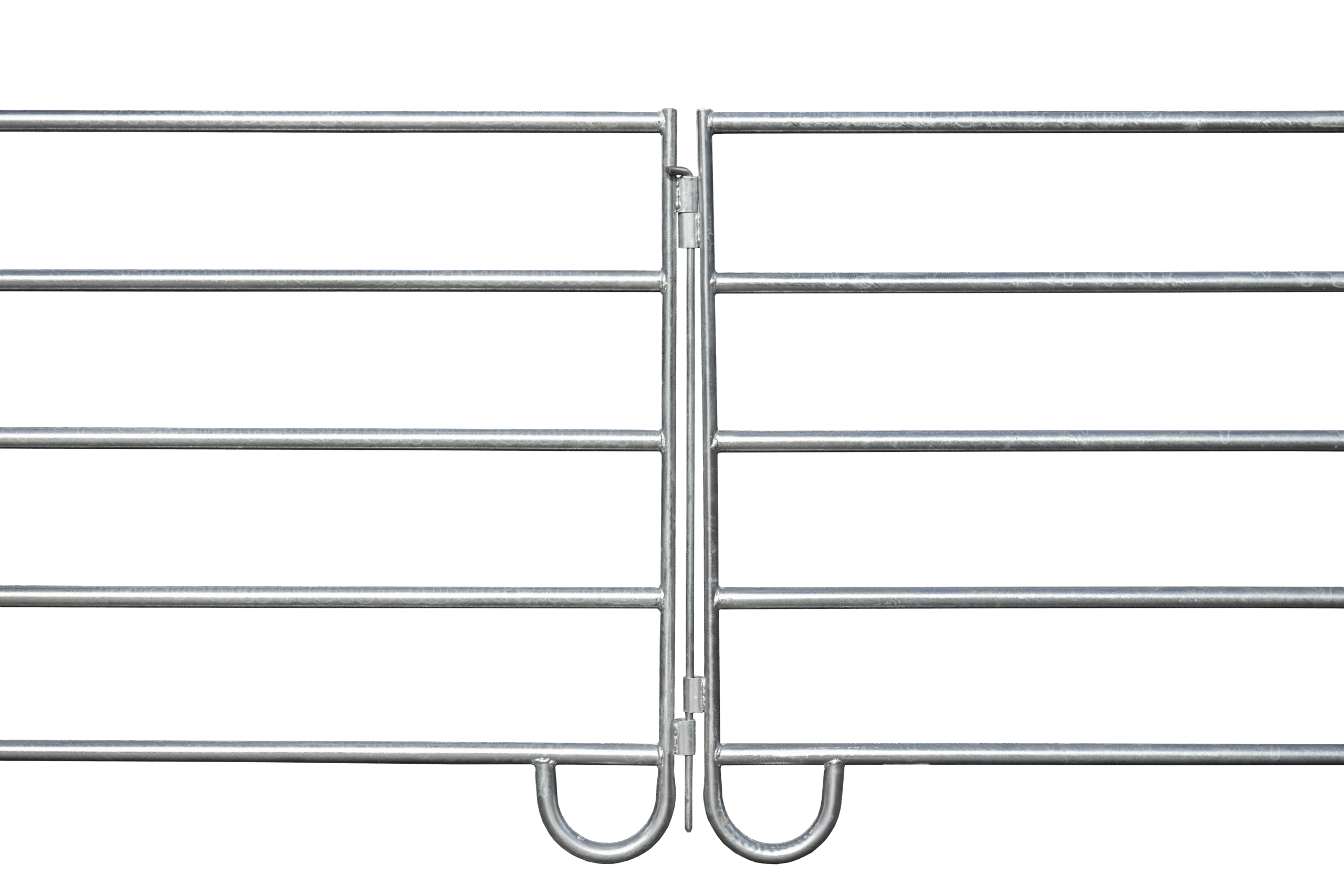

L-shaped connecting pin
The side panels are easily connected by a simple L-shaped hinge pin.
ThruTube construction technology
Our ThruTube construction method leverages the combined strength of two tubes joined in a single integrated system, maximizing material strength through a cantilevered mechanical connection, combined with welding for even greater strength.
The result is unparalleled structural rigidity, capable of withstanding the daily stresses of intensive use.
Facilitated entry for the breeder
Front swing gate, available as an option, to allow the farmer quick and convenient access to calves.
Universal box joint element
Easy to install, this component allows universal connection between different boxes.
Inside-Out Hot Galvanizing
An advanced method of protecting steel from corrosion, ensuring a long service life both inside and outside the pipes.
Perzonalizable front options
Available with standard inclined front or V-Trainer front, depending on the needs of the farm.
Reinforced plastic feeders
Plastic 16-gallon feeders, virtually indestructible.
ThruTube Extension Joint
It reinforces the structure at the joints, making it customizable to your needs. With the extension joint you can add as many panels as you want, while still maintaining the rigidity and stability of the connection.
Side panel options
Available with standard side panel or with a trough-ready panel that allows installation of the Hampel reinforced plastic feeder.
Head lock accessory
Optional accessory that allows safe locking of the calf’s head during handling operations.
